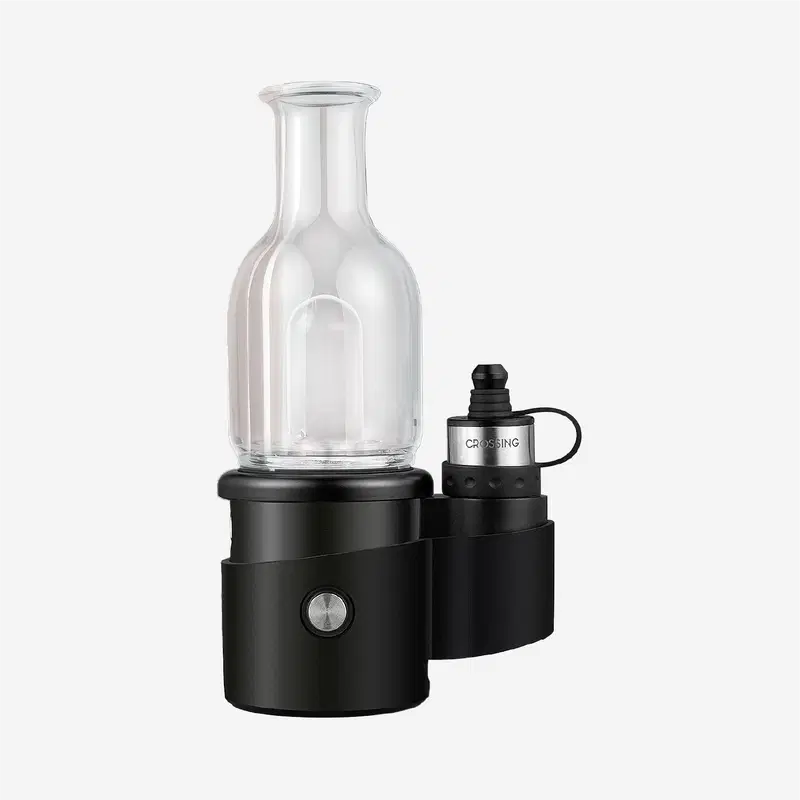

Core 2.0/2.1 E-Rig

Low Maintenance

This product is low maintenance since its 3150mah Li-Ion battery pack only requires an hour and 45 minutes to charge, allowing you to enjoy long sessions fully. Ensure not to over-charge or over-discharge the device to prevent over-heating and short-circuits. Core 2.0 E-Rig is easy to clean as well! Here are some tips on how to clean your E-Rig to ensure that it will stay with you for a longer time:

• Wipe out the heater with a Q-tip after using
• Clean the area around the heater weekly to stop residue from building up
• Wipe out the airway with a Q-tip every month or so
• Replace the bubbler water daily
• To clean the bubbler, fill it with hot water and shake to remove large residues. Soak in ISO to fully clean. Rinse thoroughly with warm water after soaking

One-button Functionality

The Core 2.0 E-Rig has a one-button functionality for easy usage, allowing you to use only a single button when operating the device. You can use this E-Rig with many concentrates within a few clicks.

• Hold for 60 seconds to manually fire up the device
• Two clicks to activate the session mode and one click to cancel
• Three clicks to change the heat setting
• Four clicks to display the power level (Red/Low, White/Medium, Green/Full)
• Five clicks to lock or unlock the rig base

Carefully Tuned Light Settings

HCH’s E-Rig has an upgraded session time of 80 seconds, which already includes its pre-heat period. Check out its session times and temperatures below:

• Blue light has a 12.5-second pre-heat at approximately 400°
• Green light has a 13-second pre-heat at approximately 425°
• White light has a 17.5-second pre-heat at approximately 465°
• Red light has a 22.5-second pre-heat at approximately 500°

When the device flashes light three times, it’s trying to tell you something. Check out what they are below:

• Blue: Short-circuit warning
• Green: No atomizer warning
• White: Over-heat warning
• Red: Low battery warning

Complete Kit

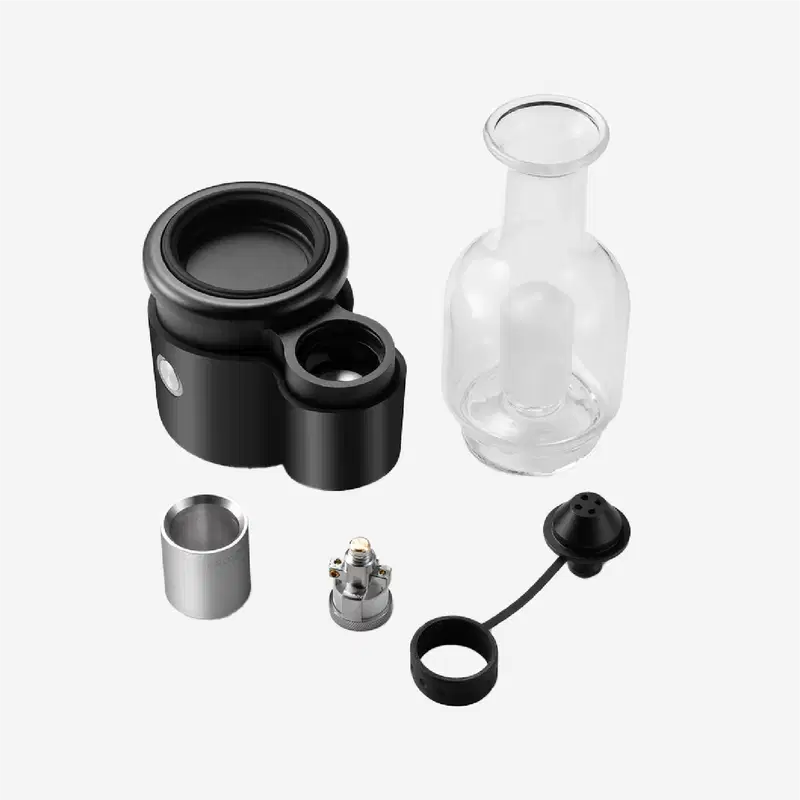

The purchase of this E-Rig includes a complete kit for an enjoyable vaping venture. Each box contains:

• Core 2.0 E-rig Base
• Core Bubbler
• Aluminum Spinner Carb Cap (based on our design)
• Carb Cap Tether (black)
• Silicone Base Cover/Sleeve (black)
• Atomizer with V5 heater installed
• Spare V5 Heater
• SS316 Dab Tool (based on our design)
• 4 x Spare Atomizer Screws
• Screwdriver
• 2 x Spare Carb Cap Tube O-rings
• 1 x Wall Plug – US inside – UK included for UK orders
• 1 x USB-C Charging Cable
• Cotton buds/Q-tips
• Alcohol wipes
• Upgraded Carry Case

Certified and FDA Approved

The Core 2.0 E-Rig was granted several certifications, proving that this product is safe and effective for the intended use and adheres to federal quality standards. Some of the secured certificates are:

• CE Certification
• ROHS Certified Materials
• FCC Certification
• FDA Approved Silicone
• UN 38.3 Certified Li-Ion Battery Pack

• Core 2.0 E-rig Base
• Core Bubbler
• Aluminum Spinner Carb Cap (based on our design)
• Carb Cap Tether (black)
• Silicone Base Cover/Sleeve (black)
• Atomizer with V5 heater installed
• Spare V5 Heater
• SS316 Dab Tool (based on our design)
• 4 x Spare Atomizer Screws
• Screwdriver
• 2 x Spare Carb Cap Tube O-rings
• 1 x Wall Plug – US inside – UK included for UK orders
• 1 x USB-C Charging Cable
• Cotton buds/Q-tips
• Alcohol wipes
• Upgraded Carry Case

• Hold – Manual fire up to 60 seconds
• Two clicks – Activate session mode – One click to cancel
• Three Clicks – Change heat setting
• Four Click – Display power level – Red/Low – White/Medium – Green/Full
• Five Clicks – Lock or unlock Core 2.0 Base

The total session time for the Core 2.0 has been upgraded to 80 seconds, including the pre-heat time.

• Blue – 12.5 second pre-heat – Approx. 400°
• Green – 13 second pre-heat – Approx. 425°
• White – 17.5 second pre-heat – Approx. 465°
• Red – 22.5 second pre-heat – Approx. 500°

Here are some of the key differences between the original Core and the new Core 2.0:

• Decreased pre-heat time
• Increase session time
• Increased total runtime to 80 seconds
• New V5 heaters, no wire-based coils
• Atomizer is made of only metal and ceramic
• Four heat settings
• Fully rebuildable atomizers – no need to replace the whole housing, just the heater
• Vortex airflow
• Glass bubble carb cap replaced with aluminum carb cap
• Improved button function
• Upgraded stainless steel carb cap tube

• Charge your base using the provided wall plug and cable.
• Fill the bubbler from the top, when it is removed from the base. Ensure any excess liquid has been wiped away and that no water has flooded into the bottom compartment. If this happens turn the bubbler upside down and blow into the air hole at the bottom to clear this section. Then re-fill from the top.
• Place bubbler onto Core 2.0 Base at an angle, ensuring that the hole in the bubbler base aligns with the vapor pathway in the Core 2.0 base, then gently and firmly push it straight down into place.
• Check small screws in the atomizer base which hold the heater legs are done up fully. These need to be tightened so they are firm, but not so much that they cut the wire legs off the heater. When this is done screw the atomizer into the Core 2.0 base.
• Place the carb cap tube on the base so that the wider angled side sits at the top, leaving the carp cab on the tether so that you can load concentrate onto the heater.
• Select your desired heat setting (start low if you’re not sure).
• Now that’s all done we get onto the vaping methods as there are different ways the Core 2.0 can be used!

• Cold Starts – This method is best for getting the most flavor and material preservation as you start using as soon as vapor is being produced. Using it in this way will cause the session temperatures to be slightly lower than otherwise because the air passing around the heater will decrease heating speed. You can start your session at any point, we suggest keeping an eye on the button flashes so that you can always begin after a set number of flashes, if desired, providing a very consistent and repeatable experience.
• Load material into the heater
• Press the fire button twice to activate session mode
• When your concentrate starts to bubble begin using gently with the carb cap left off
• When the Core 2.0 base vibrates place the carb cap back on and continue your use as you normally would
• For subsequent sessions just use as desired, when the flavor leaves your material, the vapor becomes harsh or stops being produces press the fire button once more to cancel the session
• If you still have material left inside at the end of the session simple hit the fire button twice again and start using immediately, no need to wait for the vibrate as your heater will already be close to adequate temperature. The second session will always run a little hotter than the first if it is started straight after
• Hot Starts – This way allows the heater to reach full temperature for any given setting; so this method is best for getting the maximum cloud production and effects as quickly as possible.

• Wipe out heater with a Q-tip after each use
• Clean the area around the RDA heater weekly to stop residue building up
• Every month or so wipe out the airway with a Q-tip soaked in ISO – allow to fully dry before use
• Replace bubbler water daily
• To clean bubbler fill with hot water and shake to remove large residues. Soak in ISO to fully clean. Rinse thoroughly with warm water after soaking.

• Over-charge
• Over-discharge/Low battery
• Over-heat
• Low heater resistance
• Short-circuit
• No atomizer

• CE Certified
• ROHS Certified Materials
• FCC Certification
• FDA Approved Silicone
• UN 38.3 Certified Li-Ion Battery Pack.

• Blue – Short-circuit warning
• Green – No atomizer warning
• White – Over-heat warning
• Red – Low battery warning
